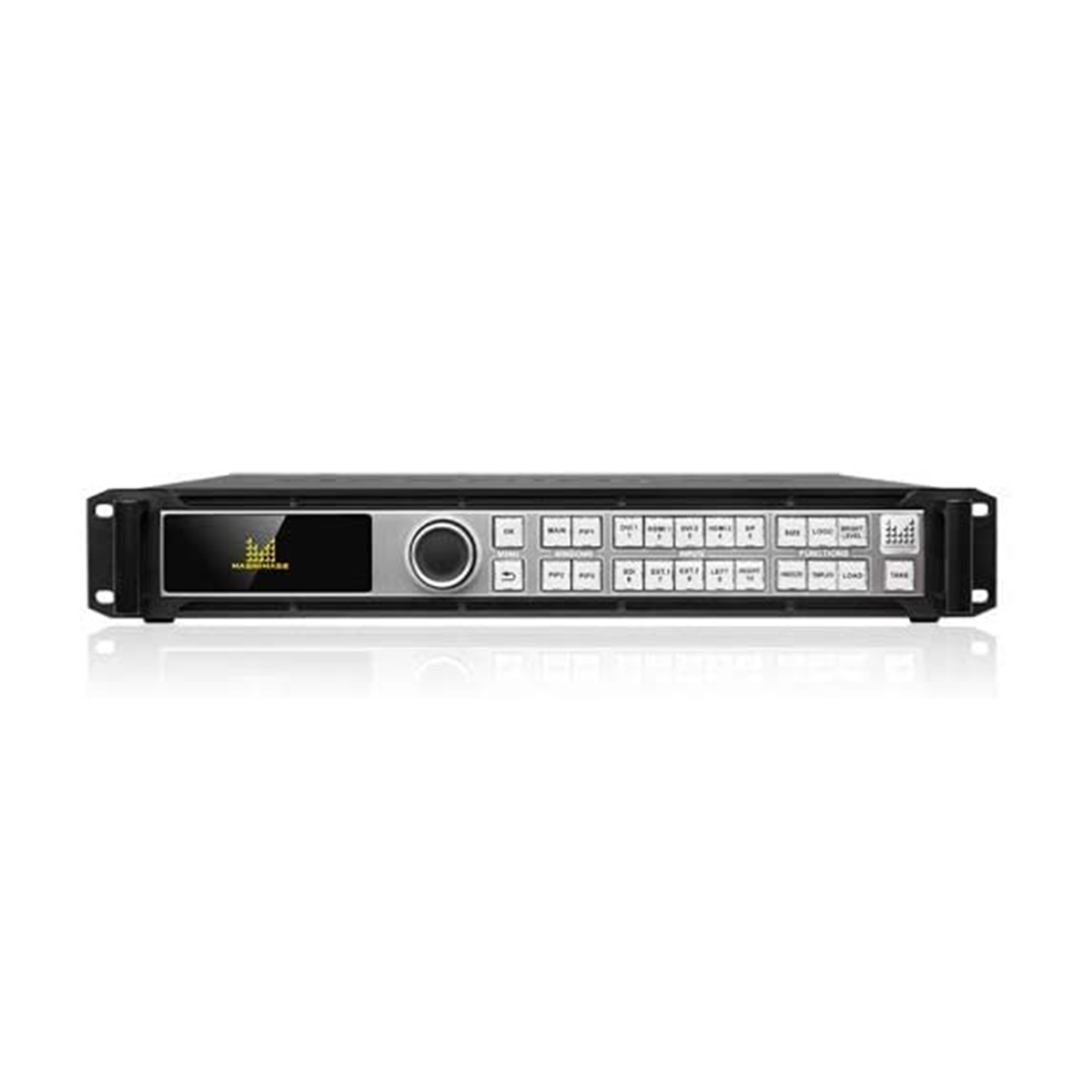

Magnimage – LED-780H

Category: Brand:


LED-780H / 760H/ 750H is a four-splicing video processor that integrates many functions such as video processing,splicing, switching,multi-screen display and so on.The device integrates various professional input interfaces and supports up to 4Kx2K/60Hz. With its high-quality images,super-resolution point-to-point loading and flexible control methods, it is widely used in multimedia conference rooms,multi-purpose halls,theaters and studios,exhibition halls,etc.

The LED-780H/750H has several times the load capacity of the ordinary video processor,and supports EDID management and custom output resolution.The maximum output of a single machine is 780H up to 15360 pixels,750H up to 7680 pixels,and the refresh rate is up to 120Hz.Greatly improve the utilization of output bandwidth.In addition to this,18 fixed output resolutions are available,and the output image is zoomed point by point according to the actual size of the LED display.
Complete video input interface,including: DVI×2,HDMI×2,DP×1(supports 4K),can also expand 2K input source two channels(VGA, DVk SDI selectable) or 4K input source(DPl.l, HDMll.4 optional) all the way.And support network,USB and RS232 serial port control,easy to interconnect with a variety of video equipment control.

  • 4K x 2K video processor
  • 4 Independent Output
  • Combined Display of Main Screen & Side Screen
  • 4 Screens Splicing in 1 Processor,Output Monitoring
  • Multiple Cascade ,4 Layers Output in 1 Processor
